Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.838
3D Adjustable Hinges

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.838

HAFELE

Drawing Files Technical Documents

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.838 by Hafele — A secure and aesthetic solution for your doors.

Properties

Product Code: 927.91.838
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 3
Height (cm): 16
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
  • 927.91.838_Safety notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

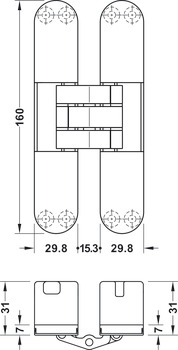

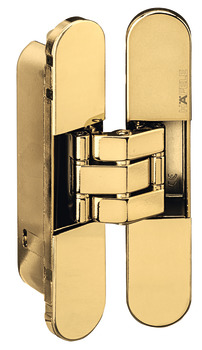

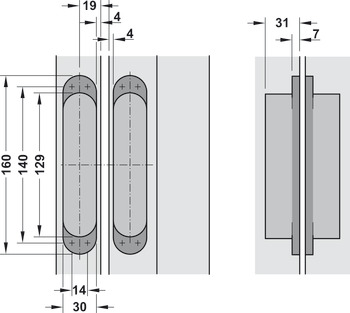

The Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.838 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and 29.8 mm width, it offers an aesthetic appearance while enhancing durability with its zinc alloy material. The 160 mm flange height ensures smooth operation of doors.

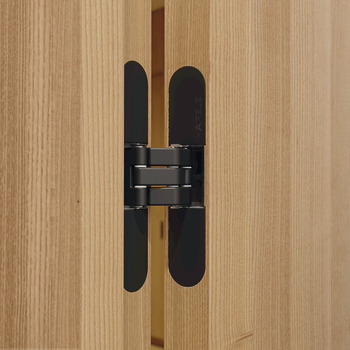

This hinge is designed for wooden frames and flush wooden interior doors. It can support up to 80 kg with 2 hinges and 100 kg with 3 hinges. The 180° opening angle provides a wide access area. The door thickness must be at least 40 mm. It features user-friendly adjustment options including side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm.



The concealed hinge, for flush interior doors up to 80/100 kg - 927.91.838, is a preferred choice due to its aesthetic appearance and high load capacity. You can confidently use your doors with Hafele's quality.
