Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.836
3D Adjustable Hinges

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.836

HAFELE

Drawing Files Technical Documents

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.836 by Hafele — A secure and aesthetic hinge solution for your doors.

Properties

Product Code: 927.91.836
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 3
Height (cm): 16
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • 927.91.836_Safety notes
  • ISO_9001_TR
  • ISO_27001_TR
  • ISO_9001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

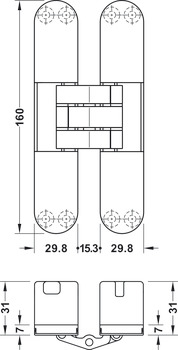

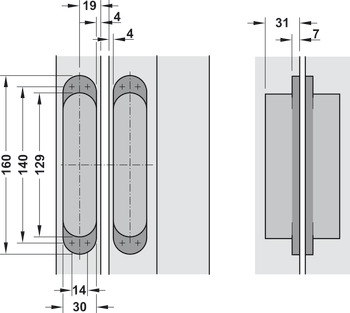

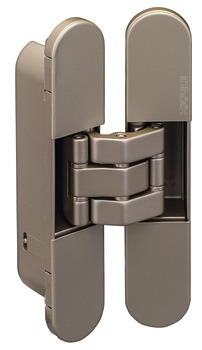

The Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.836 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and a flange width of 29.8 mm, providing an aesthetic appeal. Made from zinc alloy, it ensures durability while offering a flange height of 160 mm for secure installation.

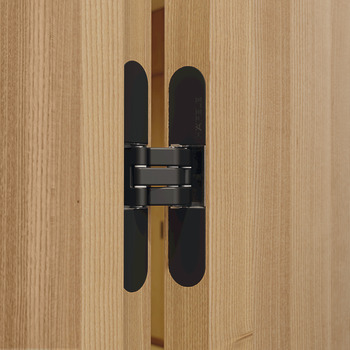

Designed for wooden frames, this hinge is compatible with flush wooden interior doors. It can support a maximum door weight of 80 kg with 2 hinges and up to 100 kg with 3 hinges. The 180° opening angle allows for full door access, enhancing usability.



This door hinge also features adjustable capabilities, providing side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm. These features offer flexibility and precision during installation. Hafele's product ensures secure and smooth operation of doors while enhancing their aesthetic appeal. This hinge is a reliable choice for your architectural projects.
