Espagnolette Locks

Espagnolette LockSymo EC, backset 40 mm - 224.65.610

HAFELE

Espagnolette LockSymo EC, backset 40 mm - 224.65.610 by Hafele — A secure locking solution that helps protect your furniture.

Properties

Product Code: 224.65.610
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
224.65.610_Certificate EN
224.65.610_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

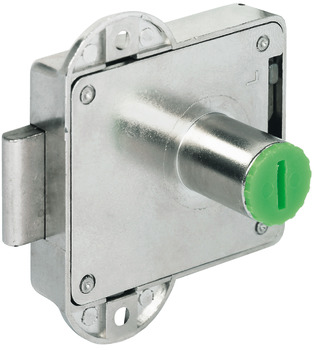

The Espagnolette LockSymo EC, backset 40 mm - 224.65.610 by Hafele represents a refined fusion of quality and functionality. This lock is made from durable zinc alloy and features a nickel-plated finish for an aesthetic appeal. With a backset of 40 mm, it adapts to various applications. Installation is done via screw fixing, allowing for flexibility in left or right mounting.

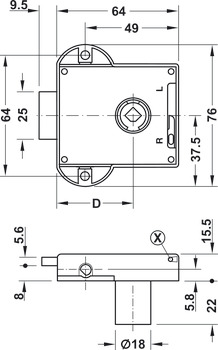

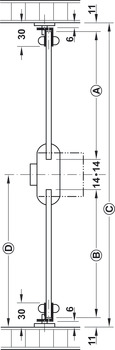

The product is designed for continuous profile rods of Ø 6 or 8 mm and is suitable for cylinder cores that are inserted from the front on site. Furthermore, it is prepared for the Häfele Symo EC removable core cylinder. The cylinder housing length is 22 mm, and the housing diameter is 18 mm. The deadbolt throw dimension is 9.50 mm. An installation note indicates that pivot rods must be cut to the required size during the design phase.

The Espagnolette LockSymo EC, backset 40 mm - 224.65.610 is an excellent choice for both security and aesthetic appeal. It is ideal for ensuring the safety of your furniture.
