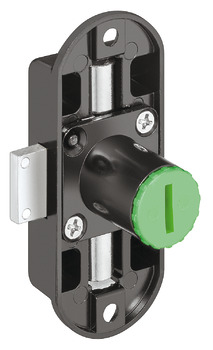

Espagnolette lockSymo EC, backset 15 mm - 224.64.350

HAFELE

Espagnolette lockSymo EC, backset 15 mm - 224.64.350 by Hafele — A reliable locking solution that protects your furniture.

Properties

Product Code: 224.64.350
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): 18
Height (cm): 8
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

224.64.350_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Espagnolette lockSymo EC, backset 15 mm - 224.64.350 by Hafele represents a refined fusion of quality and functionality. Made from durable zinc alloy, it is designed for divided profile rods with a diameter of 6 mm. This lock is suitable for cylinder cores that are inserted from the front on site and is compatible with the Häfele Symo EC removable core cylinder.

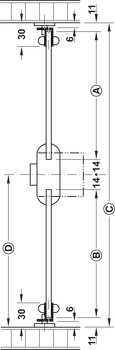

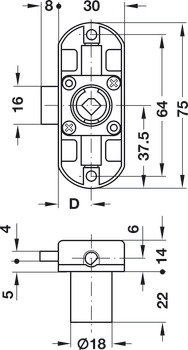

With a cylinder housing length of 22 and a housing diameter of 18, it features an 8 mm deadbolt throw dimension and a locking system with 5 pin tumblers. It is essential to note that the pivot rods must be cut to the required size during installation. With the existing internal cabinet height, the upper and lower rod dimensions can be calculated when installing the espagnolette lock at half height. Additionally, due to the three different backsets (15, 25, and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

The Espagnolette lockSymo EC, backset 15 mm stands out for its security and practicality, making it an excellent choice for those looking to safeguard their furniture.
