Espagnolette Locks

Espagnolette lockSymo EC, backset 15 mm - 224.64.650

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Espagnolette lockSymo EC, backset 15 mm - 224.64.650 by Hafele — A secure and practical locking solution.

Properties

Product Code: 224.64.650
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): 18
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

224.64.650_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

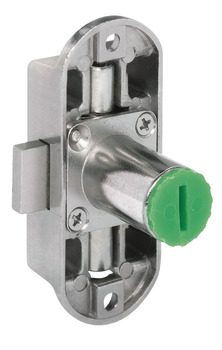

The Espagnolette lockSymo EC, backset 15 mm - 224.64.650 by Hafele represents a refined fusion of quality and functionality. This lock is made of zinc alloy, providing a durable and long-lasting use. Its design is suitable for divided profile rods and allows for the installation of Ø 6 mm cylindrical cores from the front. Additionally, it is prepared for the Häfele Symo EC removable core cylinder.

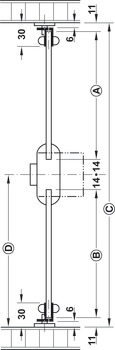

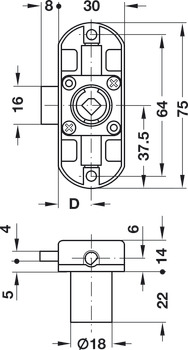

With a cylinder housing length of 22 and a housing diameter of 18, installation is straightforward. It features an 8 mm deadbolt throw dimension and a locking system with 5 pin tumblers, enhancing security. During installation, it is important to note that the pivot rods must be cut to the required size. When installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing center ⓓ is 25 mm.

The Espagnolette lockSymo EC stands out with its high security standards and ease of use. If you are looking for a reliable locking solution for your furniture, this product is an excellent choice.
