Espagnolette lockSymo EC, backset 25 mm - 224.64.660

HAFELE

Espagnolette lockSymo EC, backset 25 mm - 224.64.660 by Hafele — A secure locking system that protects your furniture.

Properties

Product Code: 224.64.660
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
224.64.660_Safety notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

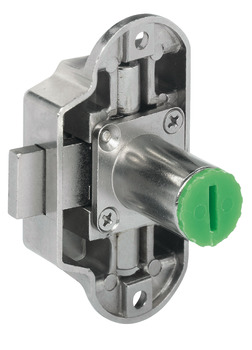

The Espagnolette lockSymo EC, backset 25 mm - 224.64.660 by Hafele represents a refined fusion of quality and functionality. This lock is made from zinc alloy and is designed for divided profile rods. It is compatible with Ø 6 mm rods and cylinder cores that are inserted from the front on site. Additionally, it is prepared for the Häfele Symo EC removable core cylinder.

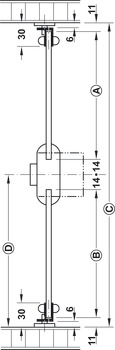

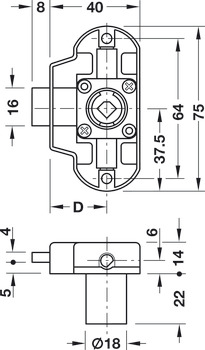

The lock features a cylinder housing length of 22 and a housing diameter of 18. It has an 8 mm deadbolt throw dimension and utilizes a locking system with 5 pin tumblers for enhanced security. Installation notes indicate that pivot rods must be cut to the required size during the cabinet design phase. With the existing internal cabinet height and installing the espagnolette lock at half height, the upper rod dimension and lower rod dimension must be calculated. The availability of three different backsets (15, 25, and 40 mm) allows for identical gap sizes for corner cabinets and rows of cabinets with the same drilling pattern.

The espagnolette lock is ideal for ensuring secure locking in cabinet systems. It provides an excellent solution for both corner cabinets and straight cabinets. This product from Hafele offers a long-lasting and reliable locking experience that meets users' needs.
