Espagnolette lockSymo EC, backset 25 mm - 224.63.610

HAFELE

Download Product ID Card

Download Product Files

Espagnolette lockSymo EC, backset 25 mm - 224.63.610 by Hafele — A secure and practical locking solution.

Properties

Product Code: 224.63.610
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
224.63.610_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

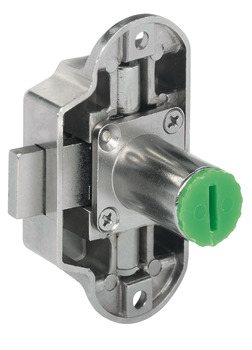

The Espagnolette lockSymo EC, backset 25 mm - 224.63.610 by Hafele represents a refined fusion of quality and functionality. This lock is made from durable zinc alloy and is designed for divided profile rods. It is compatible with cylinder cores that can be inserted on-site, ensuring ease of use.

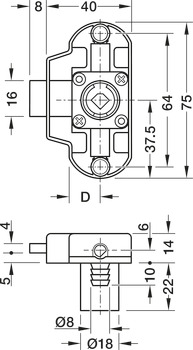

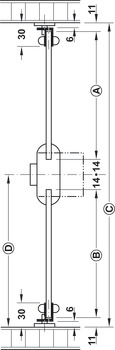

With a cylinder housing length of 22 mm and a housing diameter of 18 mm, installation is straightforward. The deadbolt throw dimension of 8 mm, combined with a locking system featuring 5 pin tumblers, enhances security. During installation, it is crucial to cut the pivot rods to the required size. With the existing internal cabinet height, the upper and lower rod dimensions can be determined when the espagnolette lock is installed at half height.

The Espagnolette lockSymo EC, backset 25 mm - 224.63.610 is the ideal choice for those seeking a secure and practical locking solution. With Hafele's quality, you can ensure the safety of your furniture.
