Espagnolette Locks

Espagnolette lockSymo EC, backset 15 mm - 224.64.600

HAFELE

Download Product ID Card

Download Product Files

Espagnolette lockSymo EC, backset 15 mm - 224.64.600 by Hafele — A secure and aesthetic locking solution.

Properties

Product Code: 224.64.600
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
224.64.600_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

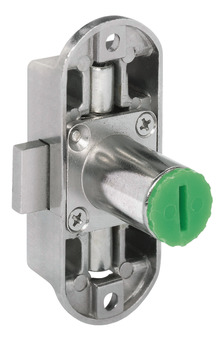

The Espagnolette lockSymo EC, backset 15 mm - 224.64.600 by Hafele represents a refined fusion of quality and functionality. Made from durable zinc alloy, this lock is designed for a divided profile rod of Ø 6 mm and is suitable for cylinder cores that can be inserted on-site. Its user-friendly design ensures easy installation.

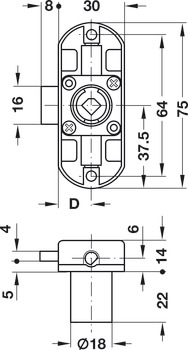

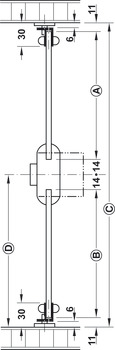

The product features a cylinder housing length of 22 mm and a housing diameter of 18 mm. With an 8 mm deadbolt throw dimension, it provides a secure locking mechanism. The locking system is equipped with 5 pin tumblers, ensuring additional security. An installation note highlights that pivot rods must be cut to the required size. The upper and lower rod dimensions are determined by the existing internal cabinet height. With three different backsets (15, 25, and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

Hafele's Espagnolette lock stands out by offering both security and aesthetic appeal, making it an ideal choice for those seeking a reliable locking solution for their cabinets.
