Espagnolette Locks

Espagnolette lockSymo EC, backset 15 mm - 224.63.650

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Espagnolette lockSymo EC, backset 15 mm - 224.63.650 by Hafele — A secure and practical locking solution.

Properties

Product Code: 224.63.650
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
224.63.650_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

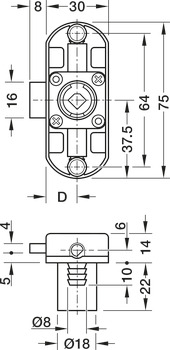

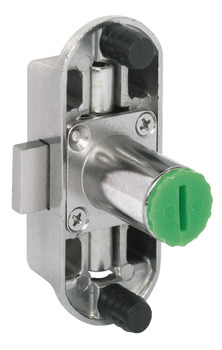

The Espagnolette lockSymo EC, backset 15 mm - 224.63.650 by Hafele represents a refined fusion of quality and functionality. This lock is designed for divided profile rods of 6 mm diameter and is compatible with cylinder cores inserted from the front. Made from durable zinc alloy, it features a cylinder housing length of 22 and a housing diameter of 18. The locking system employs 5 pin tumblers for enhanced security.

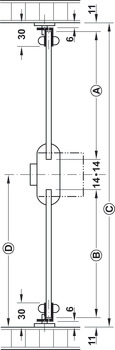

With an 8 throw dimension for the deadbolt, this lock ensures a secure closure. It is important to note that the pivot rods must be cut to the required size during installation. When installing the espagnolette lock at half height, the upper and lower rod dimensions can be determined based on the internal cabinet height. Additionally, with three different backsets (15, 25, and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

This product is an excellent choice for those seeking a secure and practical locking solution. Designed with Hafele's expertise, this espagnolette lock stands out with its quality materials and functionality.
