Espagnolette Locks

Espagnolette lockSymo EC, backset 15 mm - 224.63.600

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Espagnolette lockSymo EC, backset 15 mm - 224.63.600 by Hafele — A secure and practical locking solution.

Properties

Product Code: 224.63.600
Category: Espagnolette Locks

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 2.2
Width (cm): 18
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
224.63.600_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

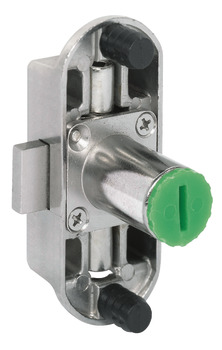

The Espagnolette lockSymo EC, backset 15 mm - 224.63.600 by Hafele represents a refined fusion of quality and functionality. This lock is made from durable zinc alloy and is designed for divided profile rods, compatible with 6 mm diameter rods. It operates with cylinder cores that are inserted from the front on-site and is prepared for the Häfele Symo EC removable core cylinder.

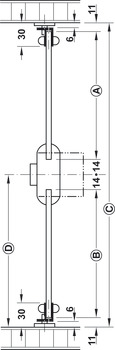

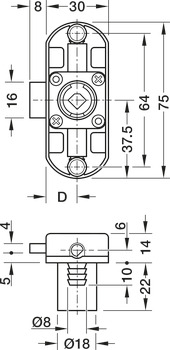

The lock features a cylinder housing length of 22, a housing diameter of 18, and a deadbolt throw dimension of 8 mm. It utilizes a locking system with 5 pin tumblers for enhanced security. During installation, it is crucial to note that the pivot rods must be cut to the required size. The existing internal cabinet height allows for the installation of the espagnolette lock at half height, determining the upper and lower rod dimensions. The housing center is set at 25 mm. With three different backsets (15, 25, and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

The Espagnolette lockSymo EC, backset 15 mm stands out by offering a perfect blend of security and functionality, making it an excellent choice for your locking needs.
