Length (cm): 2.2
Width (cm): 18
Height (cm): 8
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
224.63.618_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

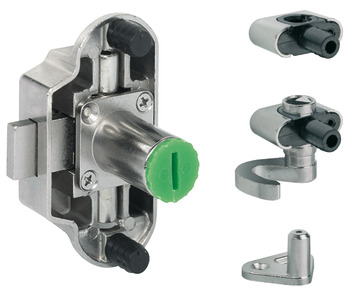

The Espagnolette Lock SetSymo Piccolo-Nova, set, backset 25 mm - 224.63.618 by Hafele represents a refined fusion of quality and functionality. This lock set is made from zinc alloy and is nickel plated to enhance durability. Its design is in harmony with the aesthetics of modern furniture, offering ease of use and security.

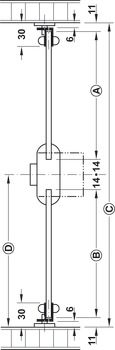

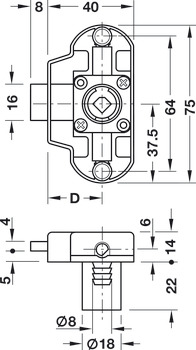

It is suitable for divided profile rods and works seamlessly with Ø 6 mm cylinder cores. Prepared for the Häfele Symo EC removable core cylinder, it provides great flexibility for users. The cylinder housing length is 22 mm, and the housing diameter is 18 mm. The deadbolt throw dimension is 8 mm. During installation, please note that pivot rods must be cut to the required size. When the espagnolette lock is installed at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ, with the housing center at ⓓ – 25 mm.
The Espagnolette Lock Set stands out by combining security and aesthetics, helping to protect your furniture. With Hafele's quality, it offers a reliable locking solution.
