Espagnolette lock, 30 mm modular system, backset 28 or 30 mm - 225.34.613 by Hafele — A secure locking solution that enhances the safety of your furniture.
Used Material:
Housing: Steel,
Follower: Plastic
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
225.34.613_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

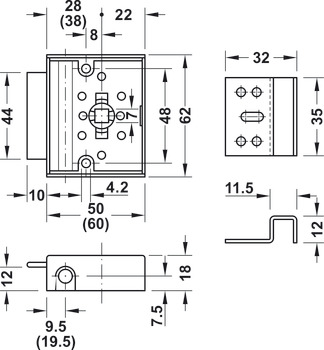

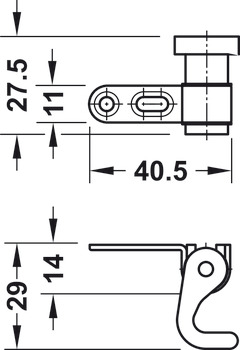

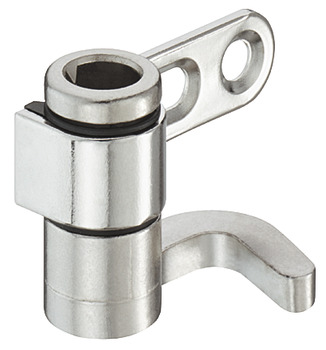

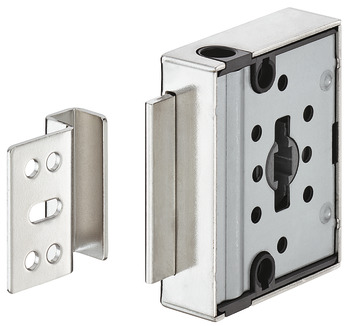

The Espagnolette lock, 30 mm modular system, backset 28 or 30 mm - 225.34.613 by Hafele represents a refined fusion of quality and functionality. This lock is suitable for continuous profile rods with a diameter of 8 mm and features a square spindle aperture of 7 mm. Made from a steel housing and plastic follower, it offers a sleek matte nickel finish and a grey follower color that adds a modern touch.

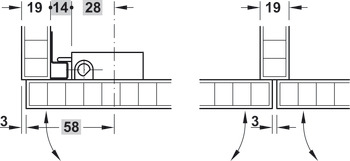

Designed for easy installation with screw fixing, this product is reversible for left or right mounting. Compatible with a 30 mm modular system, it boasts a deadbolt throw dimension of 10 mm. The different backsets (28 mm and 38 mm) allow for identical gap sizes to be produced with the same drilling pattern for cabinet rows. For instance, it can be used with 19 mm thick wood and a 3 mm gap.
The espagnolette lock by Hafele stands out as a reliable and aesthetically pleasing locking solution for your furniture. Its unique combination of functionality and design makes it an ideal choice for various applications.
