Architectural Door Hinges

Architectural door hinge, Simonswerk VN 3738/160 - 924.13.403

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Architectural door hinge, Simonswerk VN 3738/160 - 924.13.403 by Hafele — Ensures secure door operation.

Properties

Product Code: 924.13.403
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Maintenance-free, long-lasting

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 3.5
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
924.13.403_Safety notes
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

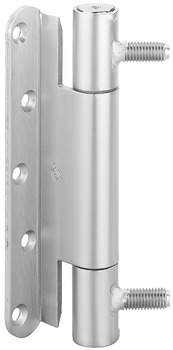

The Architectural door hinge, Simonswerk VN 3738/160 - 924.13.403 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge is designed for both DIN left and DIN right applications. Its rounded flange shape and matte finish make it an ideal fit for modern architectural designs. Capable of supporting door weights up to 160 kg, it is perfect for heavy doors.

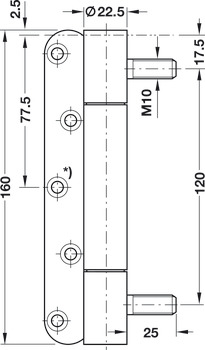

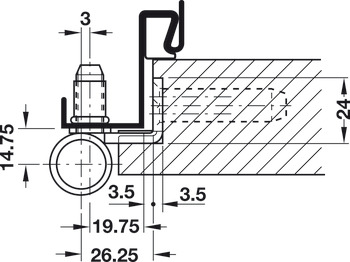

This hinge features a knuckle diameter of 22.50 mm and a knuckle length of 160 mm, providing robust support. With a flange thickness of 3.50 mm and a flange height of 160 mm, it offers durability and strength. The hinge has a radius of 12 mm, ensuring smooth operation. Additionally, the maintenance-free journal thrust bearing type enhances its longevity.

This hinge is certified in compliance with EN 1935:2002 and has a grade of 4|7|7|1|1|4|1|14. It is recommended to order the carrying pin separately for doors under extra load. Mounting is facilitated with the Simonswerk routing jig type 5 250353 5 and VARIANT VN 3700/160 series drilling jigs. The durability and functionality of this hinge make it an excellent choice for any door application.
