Drill In Hinges

Wing part, Simonswerk V 0037 WF - 922.00.503

HAFELE

Download Product ID Card

Download Product Files

Wing part, Simonswerk V 0037 WF - 922.00.503 by Hafele — A reliable hinge solution for your doors.

Properties

Product Code: 922.00.503
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.00.503_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

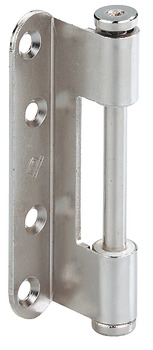

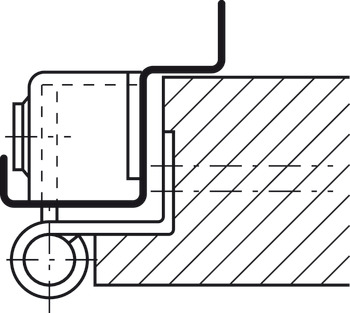

The Wing part, Simonswerk V 0037 WF - 922.00.503 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for rebated wooden interior doors and is suitable for both DIN left and DIN right hand use. Made from stainless steel, it ensures long-lasting durability. Additionally, it features a friction bearing that requires no maintenance, enhancing its performance.

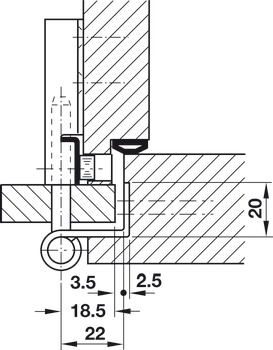

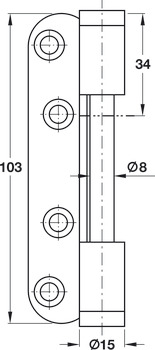

The wing part provides a seamless experience in opening and closing doors. With a knuckle diameter of 15 mm and a router bit diameter of 20 mm, it ensures perfect compatibility. Its 10 mm radius and 2.50 mm flange thickness offer high security and durability in door installations.

The Wing part, Simonswerk V 0037 WF - 922.00.503 is an excellent choice by Hafele, providing reliable support for your doors with its quality and durability.
