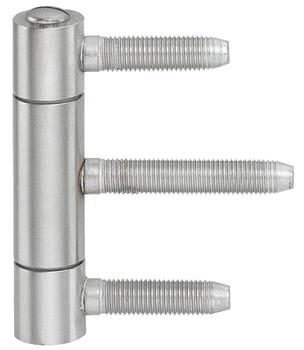

Drill-in hinge, Simonswerk BAKA C - 922.10.970
Drill In Hinges

Drill-in hinge, Simonswerk BAKA C - 922.10.970

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Simonswerk BAKA C - 922.10.970 by Hafele — a reliable and durable hinge solution for your doors.

Properties

Product Code: 922.10.970
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
Corrosion resistance

Product Attribute Symbols
Dimensions

Length (cm): 8.6
Width (cm): 20
Height (cm): 86
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • 922.10.970_Safety notes
  • ISO_9001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Drill-in hinge, Simonswerk BAKA C - 922.10.970 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right-hand use, this hinge is crafted from high-quality steel, ensuring long-lasting performance with corrosion resistance. With a knuckle diameter of 20 mm and a radius of 10 mm, it is perfect for various door applications.

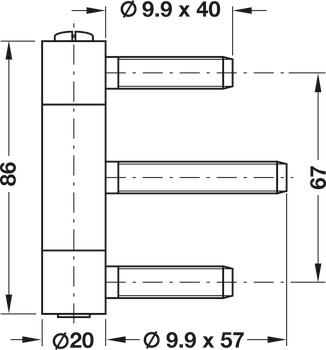

This hinge can support a maximum door weight of 100 kg, making it suitable for heavy doors. The knuckle length of 86 mm and a router bit diameter of 20 mm allow for precise installation, while the 8.8 mm drill hole diameter ensures compatibility with standard fittings. Additionally, the friction bearing design eliminates the need for maintenance, providing a hassle-free experience. An optional security pin is available for outward opening doors, enhancing safety. The adjustment facilities allow for side adjustment of ±3 mm and closing pressure adjustment of ±3 mm, offering flexibility during installation.



The Drill-in hinge, Simonswerk BAKA C - 922.10.970 stands out with its unique strengths, providing a reliable and long-lasting solution for your door needs.
