Special hinge, Half overlay mounting for wooden doors - 327.22.523

HAFELE

Special hinge, Half overlay mounting for wooden doors - 327.22.523 by Hafele — Provides perfect compatibility for wooden doors with half overlay mounting.

Properties

Product Code: 327.22.523
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
327.22.523_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

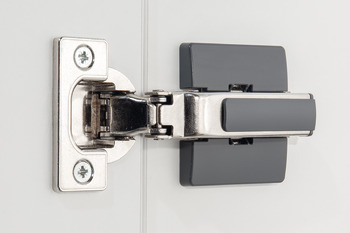

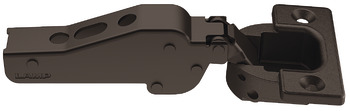

The Special hinge, Half overlay mounting for wooden doors - 327.22.523 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for half overlay mounting, making it an ideal solution for wooden doors. Made from zinc alloy for the cup and steel for the hinge arm, it ensures durability and longevity.

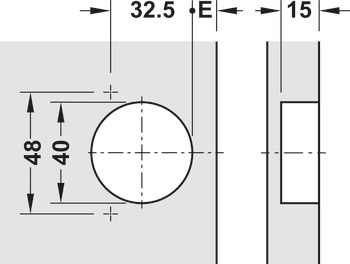

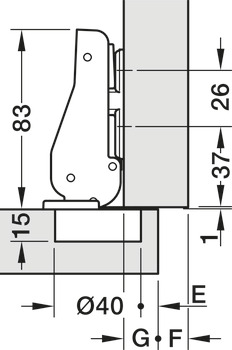

With an opening angle of 95°, it allows doors to open and close smoothly. The cup drilling depth is 15 mm, and it offers screw fixing for secure installation. The adjustment facility includes side adjustment from -4/+0 mm, depth adjustment from -2.5/+1.5 mm, and height adjustment of ±3 mm. The installation is facilitated by sliding the door onto the cabinet, and the hinge supports clip-on installation.

The Special hinge, Half overlay mounting for wooden doors - 327.22.523 stands out for its functionality and aesthetic appeal, making it an excellent choice for any wooden door.
