Concealed hinge Metalla 510 A/SM 94° - 329.49.603

HAFELE

Download Product ID Card

Download Product Files

Concealed hinge Metalla 510 A/SM 94° - 329.49.603 by Hafele — an ideal solution for thick and profile doors.

Properties

Product Code: 329.49.603
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
329.49.603_Safety notes
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

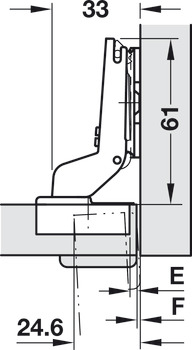

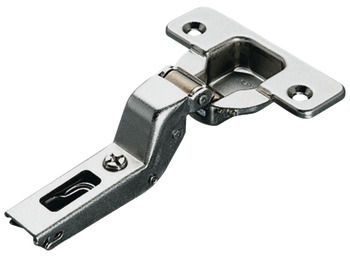

The Concealed hinge Metalla 510 A/SM 94° - 329.49.603 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for thick doors and profile doors, accommodating door thicknesses of up to 35 mm. With a high opening angle of 94 degrees, it allows for a wider door opening, enhancing accessibility. Made from durable steel, it features a nickel-plated finish, adding an aesthetic appeal.

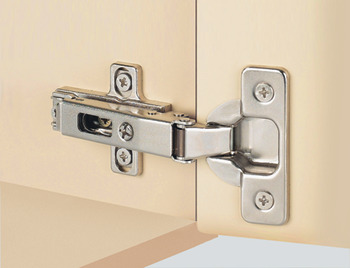

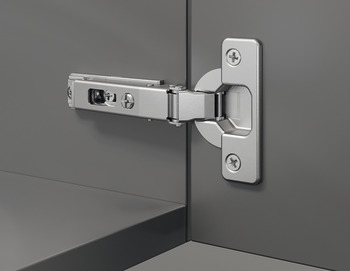

This concealed hinge comes with cup drilling for easy installation, featuring a cup drilling depth of 11 mm and a diameter of 40 mm. The installation can be performed using either the slide-on system A or the quick fixing system SM. The hinge also offers various adjustment facilities, including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment options with Metalla 510 A and SM mounting plates.

The Concealed hinge Metalla 510 A/SM 94° - 329.49.603 stands out for its unique combination of aesthetics and functionality, making it a top choice for enhancing door installations.
