Furniture Hinges

Mounting plate, zinc alloy - 342.20.050

HAFELE

Download Product ID Card

Download Product Files

Mounting plate, zinc alloy - 342.20.050 by Hafele — an ideal mounting solution for Blum Clip Top Blumotion hinges.

Properties

Product Code: 342.20.050
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
342.20.050_Safety notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

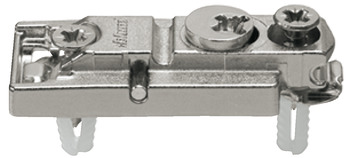

The Mounting plate, zinc alloy - 342.20.050 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion concealed hinges. Made from zinc alloy and finished with nickel plating, it enhances durability while ensuring ease of use during installation.

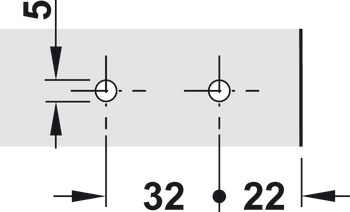

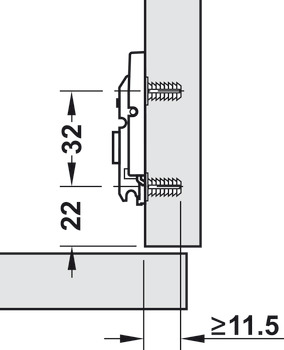

The mounting plate features a drill hole diameter of 5 mm, requiring a drilling depth of 11.50 mm. With a screw distance of 32 mm and an edge distance of 22 mm, it allows for secure and reliable mounting. The eccentric adjustment facility enables height adjustments of ±2 mm, providing flexibility during installation.

The Mounting plate - 342.20.050 offers a reliable solution for your mounting needs. Crafted with Hafele's quality, this product is designed to meet the demands of users effectively.
