Mounting plate, Steel, for press fitting with pre-mounted dowels - 342.22.070 by Hafele — A reliable solution for your mounting needs with its durable steel construction.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
342.22.070_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

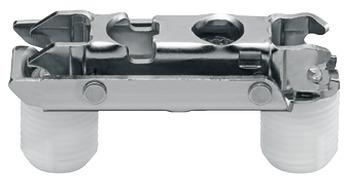

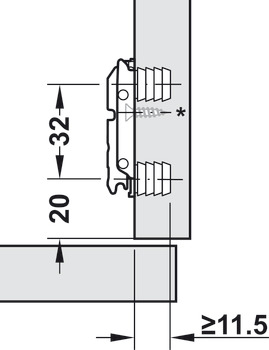

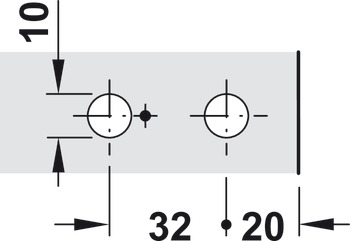

The Mounting plate, Steel, for press fitting with pre-mounted dowels - 342.22.070 by Hafele represents a refined fusion of quality and functionality. Made from steel, this mounting plate features a nickel plating that enhances its durability. With a drill hole diameter of 10 mm and a drilling depth of 11.50 mm, it simplifies the mounting process. The screw distance of 32 mm and edge distance of 20 mm allow for precise adjustments during installation.
The side adjustment capability enables ±2 mm adjustments when used for front fixing, while height adjustment can be achieved via the eccentric mechanism with ±2 mm. This mounting plate is designed for press fitting with pre-mounted dowels, significantly speeding up the installation process. Its clip system fixing method further enhances its practicality.
This mounting plate stands out with its robust construction and practical use. It offers a reliable mounting solution backed by Hafele's quality.
