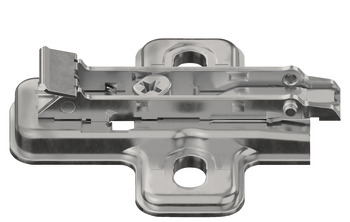

Cruciform mounting plate Metalla 510 SM - 329.74.506

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate Metalla 510 SM - 329.74.506 by Hafele — A product that simplifies assembly operations.

Properties

Product Code: 329.74.506
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
329.74.506_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate Metalla 510 SM - 329.74.506 by Hafele represents a refined fusion of quality and functionality. Made from steel, this mounting plate features a nickel-plated finish for enhanced durability. It stands out for its ease of use and practicality in assembly processes.

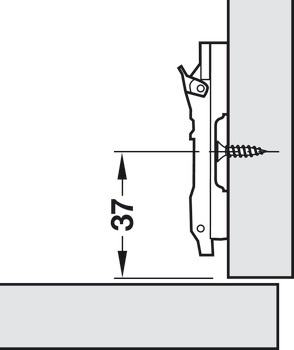

With a screw distance of 32 mm and an edge distance of 37 mm, it ensures precise mounting. Height adjustment is facilitated through a ±2 mm slot, while depth adjustment is achieved via an eccentric mechanism. The quick fixing system SM saves time and enhances user experience.

The Cruciform mounting plate stands out for its unique advantages and is designed to meet user needs effectively.
