Concealed HingeMetalla 510 A/SM 94° - 329.05.665

HAFELE

Concealed HingeMetalla 510 A/SM 94° - 329.05.665 by Hafele — Designed for thick and profile doors, this hinge offers a 94° opening angle for optimal functionality. Its steel construction ensures long-lasting durability and reliability.

Properties

Product Code: 329.05.665
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
329.05.665_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

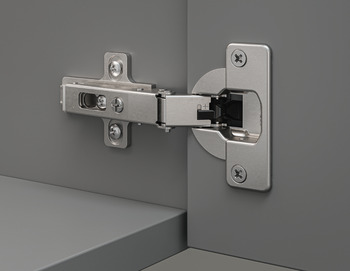

The Concealed HingeMetalla 510 A/SM 94° - 329.05.665 by Hafele represents a refined fusion of quality and functionality. Specifically designed for thick and profile doors, this hinge features a full overlay version that provides an aesthetically pleasing look. Made from steel and finished with nickel plating, it combines durability with a modern appearance.

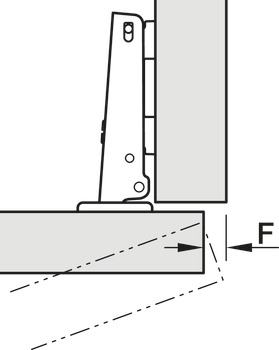

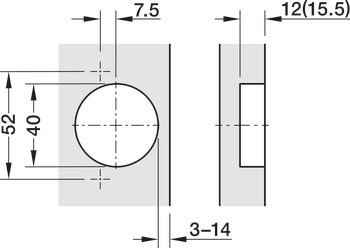

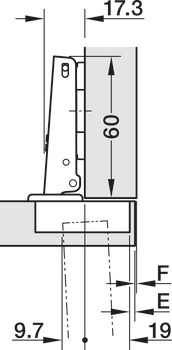

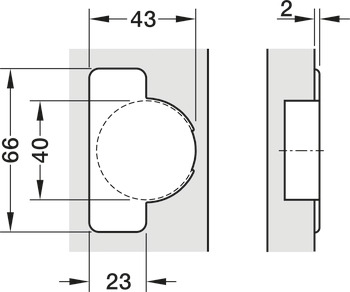

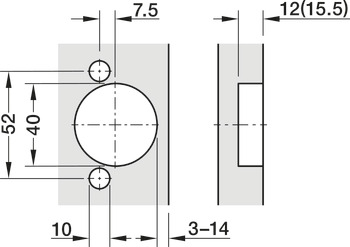

With a 94° opening angle, it allows for smooth door operation. The hinge is designed with cup drilling of 40 mm, making installation straightforward. Additionally, the adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment of +2.8 mm, ensuring precise alignment during installation.

This hinge stands out due to its unique features and quality, making it a preferred choice for door installations.
