Furniture Hinges

Mounting plate for Tiomos - 348.38.502

HAFELE

Download Product ID Card

Drawing Files Technical Documents

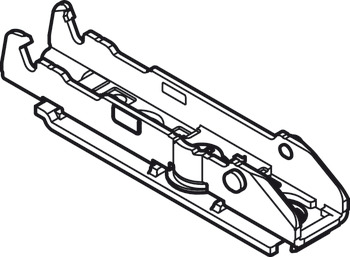

Mounting plate for Tiomos - 348.38.502 by Hafele — an excellent mounting solution for concealed hinges.

Properties

Product Code: 348.38.502
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

348.38.502_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

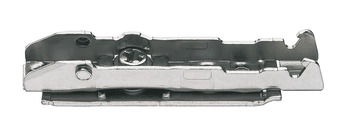

The Mounting plate for Tiomos - 348.38.502 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to provide high performance in the installation of concealed hinges. Made from durable steel and featuring a nickel-plated finish, it offers both aesthetic appeal and robust performance. Its user-friendly design allows for quick and easy installation.

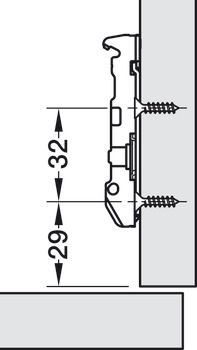

The Tiomos mounting plate accommodates a drill hole diameter of 3.50 mm and a screw distance of 32 mm, meeting standard installation requirements. Additionally, with an edge distance of 29 mm, it fits various furniture designs seamlessly. Height adjustment is achievable via a worm gear system, allowing for flexibility during installation. The clip system simplifies the mounting process, and it can be fixed using chipboard screws or Euro screws.

The Tiomos mounting plate stands out with its high-quality materials and functional design. The ease of installation and flexibility it provides make it a preferred choice among users.
