Mounting plate for Tiomos - 348.38.501
Furniture Hinges

Mounting plate for Tiomos - 348.38.501

HAFELE

Drawing Files Technical Documents

Mounting plate for Tiomos - 348.38.501 by Hafele — Provides strength and reliability in mounting concealed hinges.

Properties

Product Code: 348.38.501
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • Güvenlik Notları--Security Notes
  • 348.38.501_Safety notes
  • ISO_27001_TR
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

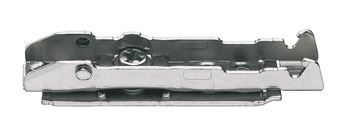

The Mounting plate for Tiomos - 348.38.501 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed for Grass Tiomos concealed hinges and is made of durable steel. Its nickel-plated surface offers both aesthetic appeal and long-lasting performance.

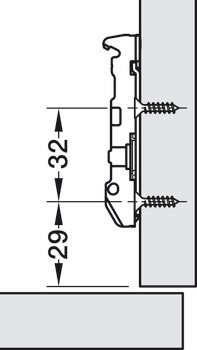

The mounting plate features a drill hole diameter of 3.50 mm, allowing for easy installation. With a screw distance of 32 mm and an edge distance of 29 mm, it provides a compatible structure. Height adjustment is possible via a worm gear by ±2 mm, adding flexibility during installation. The clip system ensures secure fixing, while the version for screw fixing allows the use of chipboard screws or Euro screws.



The Mounting plate for Tiomos - 348.38.501 stands out with its user-friendly design and high-quality materials. It is preferred for its ease of use and reliability in mounting operations.
