Furniture Hinges

Mounting plate for screw fixing - 342.22.093

HAFELE

Download Product ID Card

Download Product Files

Mounting plate for screw fixing - 342.22.093 by Hafele — Provides reliable support for your assembly tasks.

Properties

Product Code: 342.22.093
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
342.22.093_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

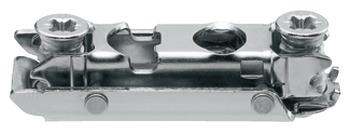

The Mounting plate for screw fixing - 342.22.093 by Hafele represents a refined fusion of quality and functionality. Made from steel, this mounting plate offers enhanced durability while its nickel plating provides an aesthetic finish. It is designed for use with Blum Clip Top Blumotion concealed hinges, Clip Top, Clip, Blum Aventos HF, HF Servo-Drive, HK-S, and HK-S Tip-On front fixing brackets.

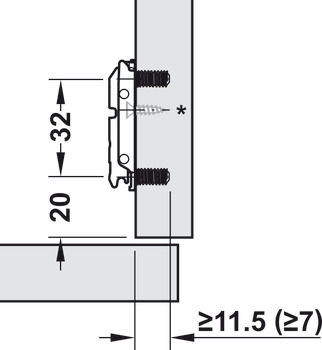

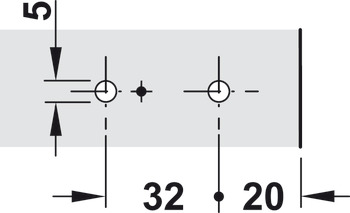

This mounting plate features a drill hole diameter of 5 mm and a screw distance of 32 mm, ensuring an easy installation process. With an edge distance of 20 mm, it allows flexibility during mounting. The side adjustment feature provides ±2 mm for front fixing, while height adjustment can be made via eccentric by ±2 mm. These attributes make the installation process more practical and efficient.

The Mounting plate for screw fixing - 342.22.093 stands out as a reliable support for your assembly needs. With its quality materials and craftsmanship, this product offers a long-lasting and practical solution.
