Furniture Hinges

Mounting plate for screw fixing - 342.22.090

HAFELE

Download Product ID Card

Download Product Files

Mounting plate for screw fixing - 342.22.090 by Hafele — A reliable solution for furniture hinge assembly.

Properties

Product Code: 342.22.090
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_9001_ENG
342.22.090_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

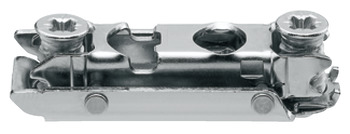

The Mounting plate for screw fixing - 342.22.090 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of steel and features a nickel-plated finish for enhanced durability. It is designed to be compatible with Blum Clip Top Blumotion concealed hinges, Clip Top, and Blum Aventos HF systems, providing an easy assembly solution with pre-mounted Euro screws.

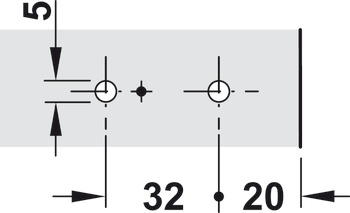

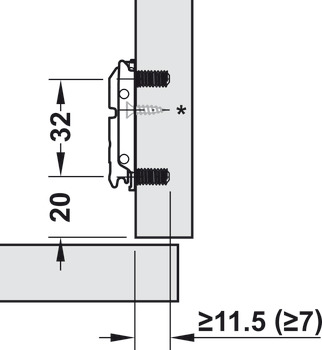

With a drill hole diameter of 5 mm, it allows for practical installation. The screw distance of 32 mm and edge distance of 20 mm offer various mounting options. The side adjustment capability allows for ±2 mm lateral adjustment during front fixing, while height adjustment can be made via an eccentric system by ±2 mm. These features enhance installation precision and provide a user-friendly experience.

The Mounting Plate offers a reliable solution for your assembly needs with its robust steel construction and secure fastening capabilities. This product from Hafele is designed to meet the needs of users seeking an effective mounting solution.
