Furniture Hinges

Mounting plate for screw fixing - 342.22.083

HAFELE

Download Product ID Card

Download Product Files

Mounting plate for screw fixing - 342.22.083 by Hafele — A perfect mounting solution for Blum hinges.

Properties

Product Code: 342.22.083
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
342.22.083_Safety notes
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

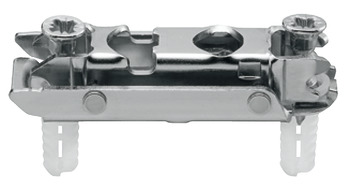

The Mounting plate for screw fixing - 342.22.083 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of steel and features a nickel plating for enhanced durability. It is designed to be compatible with Blum Clip Top Blumotion concealed hinges, Clip Top, and Blum Aventos HF systems.

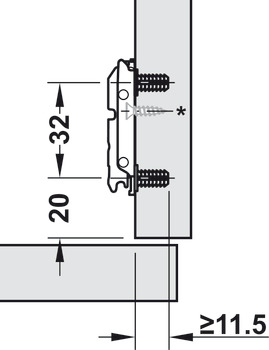

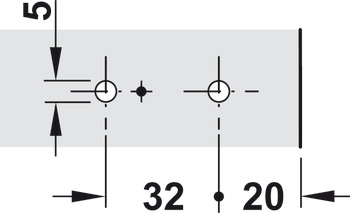

The product is suitable for drill holes of 5 mm in diameter and requires a drilling depth of 11.50 mm. It has a screw distance of 32 mm and an edge distance of 20 mm, making installation straightforward. It offers side adjustment of ±2 mm when used for front fixing and height adjustment via eccentric of ±2 mm. The mounting plate comes with pre-mounted special screws and spreading dowels for easy installation.

The Mounting plate for screw fixing - 342.22.083 stands out due to its high-quality materials and practical design, making it a preferred choice for many applications.
