Hinge With Short ArmMetalla 130 Mini SA - 343.80.700
Furniture Hinges

Hinge With Short ArmMetalla 130 Mini SA - 343.80.700

HAFELE

Download Product Files

Hinge With Short ArmMetalla 130 Mini SA - 343.80.700 by Hafele — Designed for thin hinged doors, this product provides excellent functionality with a smooth opening angle. Its high-quality steel construction ensures durability and longevity.

Properties

Product Code: 343.80.700
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 40
Height (cm): 0.1
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 343.80.700_Safety notes
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_ENG
  • ISO_27001_TR
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Hinge With Short ArmMetalla 130 Mini SA - 343.80.700 by Hafele represents a refined fusion of quality and functionality. Specifically designed for thin hinged doors, this hinge offers ease of use and high performance. Made from steel and finished with nickel plating, it ensures durability and resistance to wear. The hinge allows for a 95° opening angle, facilitating smooth operation.

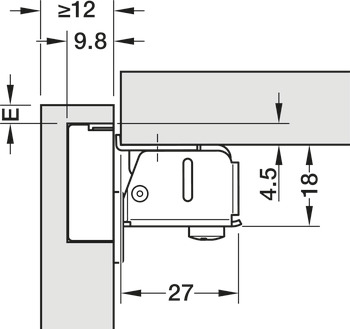

This hinge is user-friendly, allowing for quick installation with height and side adjustments. It accommodates doors with a thickness of ≥12 mm and is suitable for widths up to 400 mm and heights up to 1800 mm. The installation process is straightforward, utilizing screws for secure fixing.



Offering screw fixing for secure installation, this hinge meets the diverse needs of users. The Hinge With Short ArmMetalla 130 Mini SA by Hafele is a reliable choice for those seeking durability and functionality in their hardware.
