Extra heavy duty hinge, VX 7729/160-4 VBRplus - 924.03.103

HAFELE

Extra heavy duty hinge, VX 7729/160-4 VBRplus - 924.03.103 by Hafele — A robust hinge designed for heavy doors, ensuring durability and reliability.

Properties

Product Code: 924.03.103
Category: Extra Heavy Duty Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.03.103_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

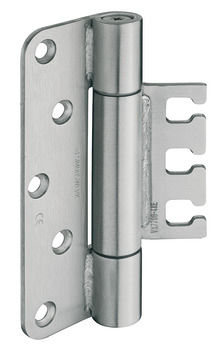

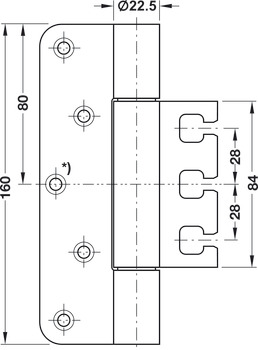

The Extra heavy duty hinge, VX 7729/160-4 VBRplus - 924.03.103 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge features a knuckle diameter of 22.50 mm, allowing it to support door weights of up to 400 kg when using two hinges. Designed for both DIN left and DIN right hand applications, it offers versatility in mounting.

With a flange thickness of 4 mm and a height of 160 mm, this hinge is built to last. Its rounded flange shape and 12 mm radius enhance its aesthetic appeal while ensuring robust performance. The friction bearing system is maintenance-free, providing ease of use and longevity. Certified according to EN 1935:2002 standards, it guarantees reliability and safety.

This hinge stands out with its robust construction and high weight capacity, making it an excellent choice for those seeking reliable and durable door solutions.
