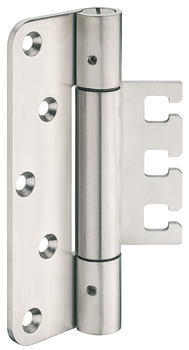

Extra heavy duty hinge, Startec DHX 1160 HD - 924.24.810

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Extra heavy duty hinge, Startec DHX 1160 HD - 924.24.810 by Hafele — Ensures secure and smooth operation of doors.

Properties

Product Code: 924.24.810
Category: Extra Heavy Duty Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_ENG
924.24.810_Safety notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Extra heavy duty hinge, Startec DHX 1160 HD - 924.24.810 by Hafele represents a refined fusion of quality and functionality. This hinge is designed with a rounded flange and made from stainless steel, providing long-lasting durability. Engineered for heavy-duty applications, it can support door weights up to 300 kg, and can also accommodate doors weighing up to 400 kg, making it a highly versatile option.

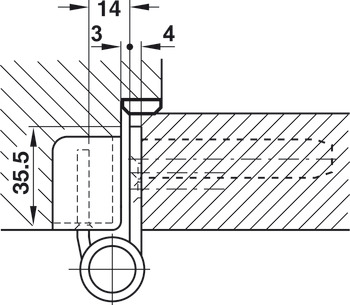

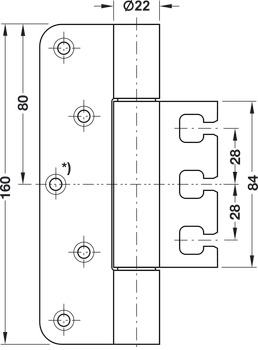

It features easy installation for both DIN left and right-hand applications. The knuckle diameter of 22 mm and knuckle length of 160 mm enhance the hinge's durability, while the flange thickness of 4 mm ensures structural integrity. Additionally, its 12 mm radius offers an aesthetically pleasing appearance. The maintenance-free friction bearings guarantee smooth operation for an extended period.

This product stands out for its durability and high door weight capacity, making it a reliable choice for various applications.
