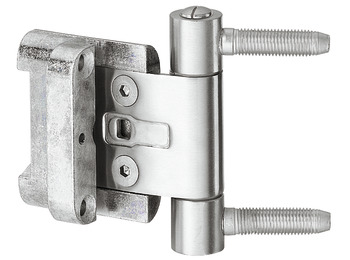

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 FD - 922.12.603

HAFELE

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 FD - 922.12.603 by Hafele — Provides durability and reliability for door installations.

Properties

Product Code: 922.12.603
Category: Drill In Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_TR
922.12.603_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

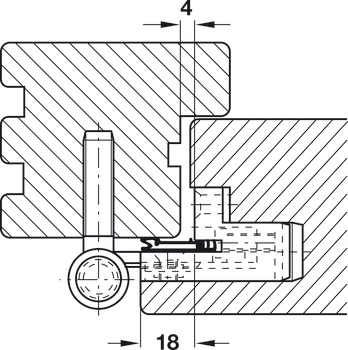

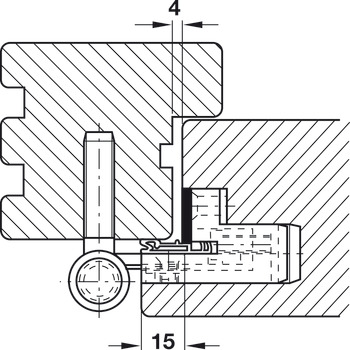

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 FD - 922.12.603 by Hafele represents a refined fusion of quality and functionality. This hinge part is designed for both DIN left and DIN right hand use, featuring an overlay distance of ≥15 mm. With its square flange shape, it boasts a flange width of 52 mm and a flange height of 66 mm, ensuring a perfect fit for door installations.

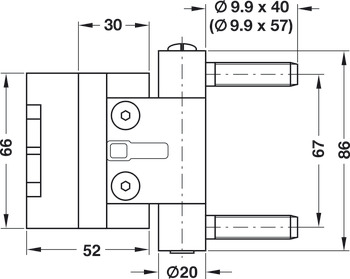

Equipped with high pull-out resistance values, this hinge is ideal for wooden frames and can support door weights up to 100 kg. Its knuckle length of 86 mm, along with a router bit diameter of 20 mm and thrust ring diameter of 30 mm, enhances its structural integrity. The friction bearing type is maintenance-free, providing long-lasting performance.

The Drill-In Hinge With Recessed Wing Part stands out with its robust construction and high durability, making it a reliable choice for various door installations.
