Drill In Hinges

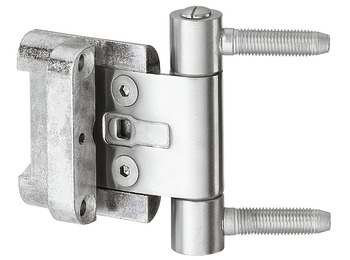

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.490

HAFELE

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.490 by Hafele — a durable and functional solution for your doors.

Properties

Product Code: 922.12.490
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
Durable

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
922.12.490_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

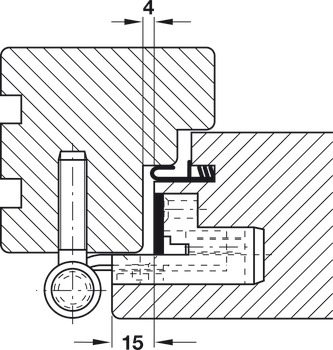

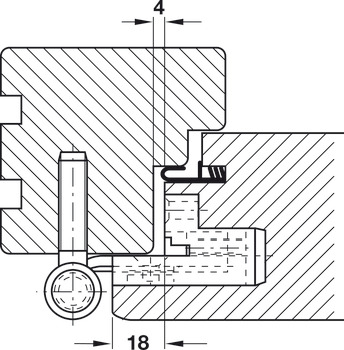

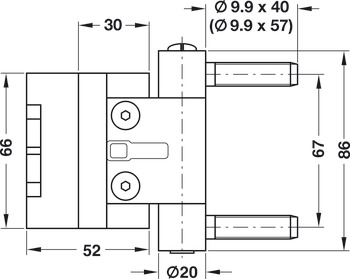

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.490 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right hand use, it features an overlay distance of ≥15 mm. The square flange shape and 52 mm flange width ensure easy installation. With a knuckle diameter of 20 mm and flange height of 66 mm, it provides a robust structure.

High pull-out resistance values are achieved thanks to the groove-mounted adjusting block within the door. This hinge is suitable for wooden frames, rebated wooden front doors, and concealed receivers in the door. It can support a maximum door weight of 100 kg, ensuring reliable performance.

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.490 is an excellent choice for your doors, standing out with its durability and functionality.
