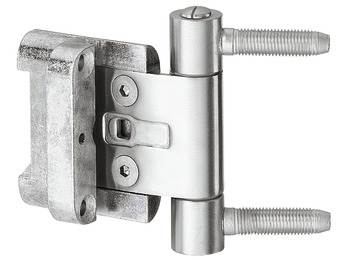

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.190

HAFELE

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.190 by Hafele — A reliable solution for door installations with high durability.

Properties

Product Code: 922.12.190
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_ENG
922.12.190_Safety notes
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

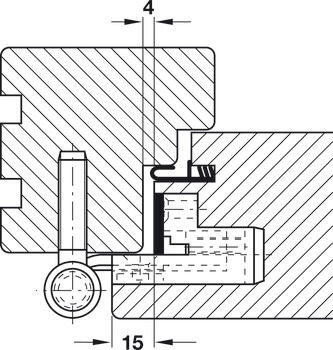

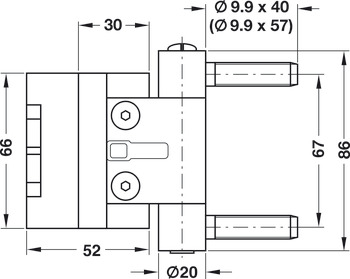

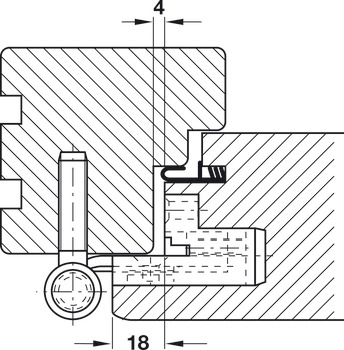

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.190 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and right hand use, it features an overlay distance of at least 15 mm, ensuring a perfect fit. The square flange shape and 52 mm flange width provide an aesthetic appeal, while the 20 mm knuckle diameter and 66 mm flange height ensure a robust structure.

Its high pull-out resistance values are achieved through the groove mounted adjusting block within the door. Capable of supporting door weights up to 100 kg, this hinge is ideal for wooden door leaves. With an 86 mm knuckle length and a 20 mm router bit, it simplifies installation. Additionally, the 30 mm thrust ring and friction bearings allow for maintenance-free operation.

This product stands out with its high durability and functionality, making it a reliable choice for door installations.
