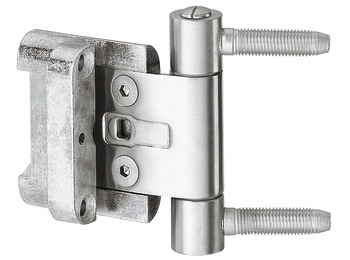

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.090

HAFELE

Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.090 by Hafele — provides exceptional durability and reliability for door installations.

Properties

Product Code: 922.12.090
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.12.090_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

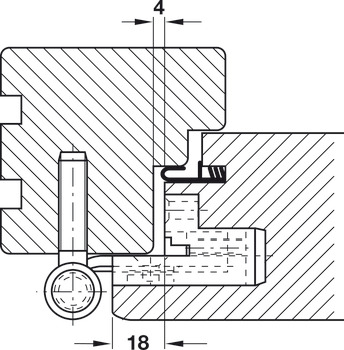

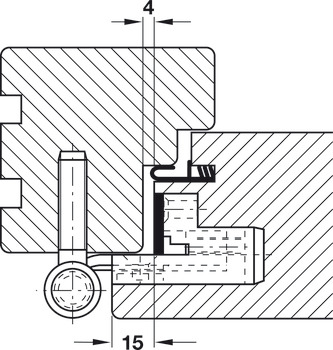

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.090 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, ensuring versatility in installation. With an overlay distance of ≥15 mm and a square flange shape, it combines aesthetic appeal with robust performance.

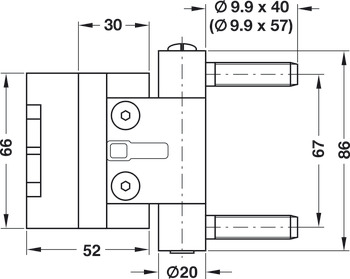

Its 52 mm flange width and 20 mm knuckle diameter contribute to its strength, while the 66 mm flange height and 10 mm radius enhance its design. The hinge is part of the BAKA C 1-15 WF and BAKA C 2-15 WF model series, making it suitable for various applications.

The Drill-In Hinge With Recessed Wing Part, BAKA 2D 20 - 922.12.090 stands out for its exceptional durability and reliability, making it a preferred choice for door installations.
