Drill-In Hinge With Recessed Wing Part - 922.12.690

HAFELE

Drill-In Hinge With Recessed Wing Part - 922.12.690 by Hafele — offers high durability and reliability in door hinges.

Properties

Product Code: 922.12.690
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.12.690_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

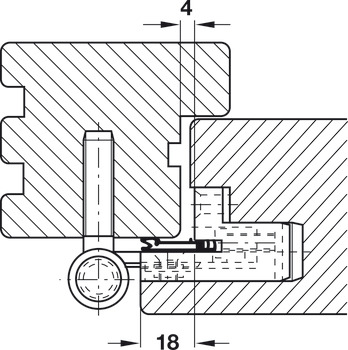

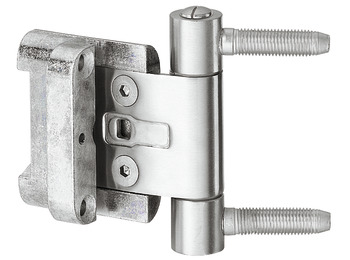

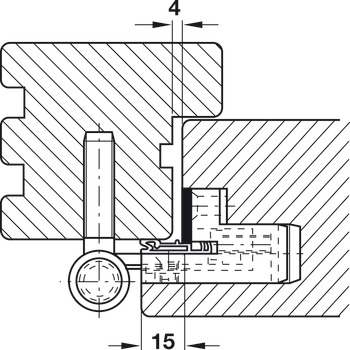

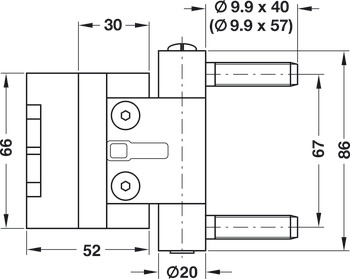

The Drill-In Hinge With Recessed Wing Part - 922.12.690 by Hafele represents a refined fusion of quality and functionality. This hinge is suitable for DIN left and DIN right hand use and features a square flange design. With a flange width of 52 mm, a knuckle diameter of 20 mm, and a flange height of 66 mm, it is engineered for high pull-out resistance values due to the groove mounted adjusting block inside the door.

The hinge is designed for wooden door leaves and works seamlessly with wooden frames. It can support a maximum door weight of 100 kg. The knuckle length is 86 mm, and it comes with a router bit diameter of 20 mm and a thrust ring diameter of 30 mm. The friction bearing design is maintenance-free, and it includes an optional security pin for outward opening doors.

This hinge stands out due to its high durability and reliability, making it a preferred choice for various applications.
