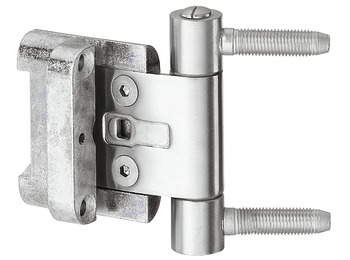

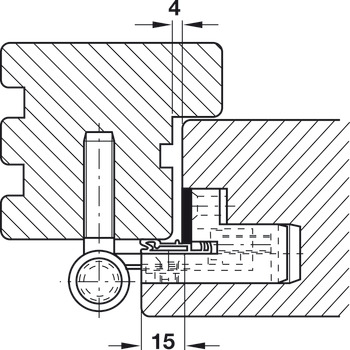

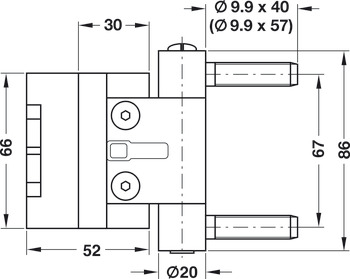

The Drill-In Hinge With Recessed Wing Part - 922.12.390 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand usage, featuring an overlay distance of 15 mm for flexible door mounting. Its square flange shape and 52 mm flange width provide a robust installation. With a knuckle diameter of 20 mm, a flange height of 66 mm, and a radius of 10 mm, it offers both strength and aesthetic appeal.
The Drill-In Hinge is ideal for wooden frames and can be used in rebated wooden front doors. It features a concealed receiver within the door, providing high pull-out resistance values due to the groove-mounted adjusting block. The maximum door weight for two hinges is 100 kg, and the knuckle length measures 86 mm. It is compatible with a 20 mm router bit and a 30 mm thrust ring, and its friction bearing design is maintenance-free.
The Drill-In Hinge stands out with its high durability and functionality, making it a reliable choice for various applications.
