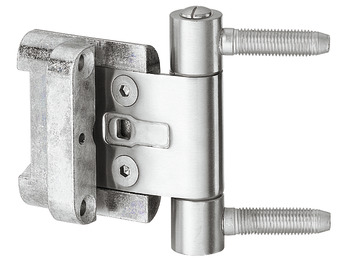

Drill-In Hinge With Recessed Wing Part - 922.12.303

HAFELE

Drill-In Hinge With Recessed Wing Part - 922.12.303 by Hafele — Provides high durability and reliability for wooden doors.

Properties

Product Code: 922.12.303
Category: Drill In Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Durable

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
922.12.303_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

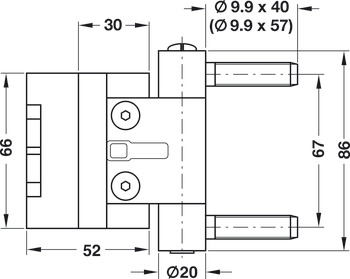

The Drill-In Hinge With Recessed Wing Part - 922.12.303 by Hafele represents a refined fusion of quality and functionality. Designed for both DIN left and DIN right-hand use, it features a square flange shape and a flange width of 52 mm. With a knuckle diameter of 20 mm, a flange height of 66 mm, and a radius of 10 mm, this hinge is ideal for wooden doors.

This product can support a maximum door weight of 100 kg, and its knuckle length is 86 mm. Compatible with a 20 mm router bit, it includes a thrust ring of 30 mm and operates with friction bearings that require no maintenance. Additionally, it can be equipped with a security pin for outward-opening doors. The side adjustment of ±3 mm and closing pressure adjustment of ±3 mm provide flexibility for installation.

The Drill-In Hinge With Recessed Wing Part - 922.12.303 stands out with its robust construction and high durability. Its security and functionality make it a preferred choice for wooden door applications.
