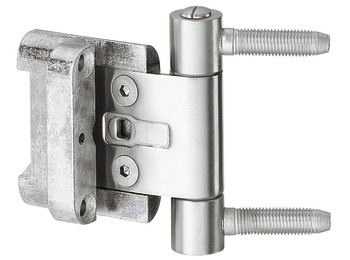

Drill-In Hinge With Recessed Wing Part - 922.12.290

HAFELE

Drill-In Hinge With Recessed Wing Part - 922.12.290 by Hafele — a durable hinge designed for wooden doors providing excellent functionality.

Properties

Product Code: 922.12.290
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 5.2
Height (cm): 6.6
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
922.12.290_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

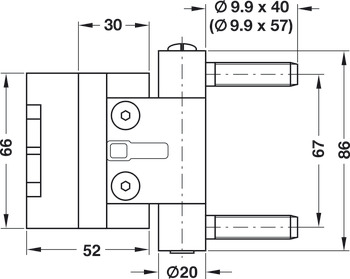

The Drill-In Hinge With Recessed Wing Part - 922.12.290 by Hafele represents a refined fusion of quality and functionality. This hinge is specially designed for wooden doors, offering not only aesthetic appeal but also high durability. Its installation is suitable for both DIN left and DIN right-hand use, ensuring versatility. The square flange shape and 52 mm flange width provide a secure connection.

With a knuckle diameter of 20 mm and a flange height of 66 mm, it ensures a safe transition between the door and frame. The 10 mm radius facilitates smooth opening and closing motions, while the 86 mm knuckle length offers additional durability. The maximum door weight for two hinges is 100 kg, making it an ideal choice for heavy doors.

The Drill-In Hinge With Recessed Wing Part - 922.12.290 offers a reliable solution for your door systems. Its high performance and durability ensure long-lasting use.
