Drill-in hinge with braking mechanism - 922.06.066

HAFELE

Drill-in hinge with braking mechanism - 922.06.066 by Hafele — A perfect solution for door hinges, enhancing durability.

Properties

Product Code: 922.06.066
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
922.06.066_Safety notes
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

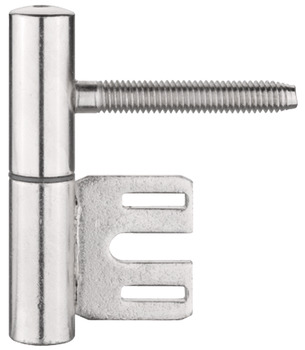

The Drill-in hinge with braking mechanism - 922.06.066 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right applications and offers a choice of different finial designs. With a nickel-plated finish, it provides an aesthetic appeal. Made from durable steel, it features a knuckle diameter of 15 mm, ensuring a robust structure.

The hinge allows for a knuckle length of 80 mm, facilitating smooth operation when opening doors. It supports a maximum door weight of 30 kg for two hinges, making it versatile for various door types. The drill hole diameters are 6.8 mm for the wing part and 7.2 mm for the frame component. Its friction bearing design is maintenance-free, ensuring long-lasting performance.

The Drill-in hinge with braking mechanism stands out for its durability and functionality, making it a reliable choice for various applications.
