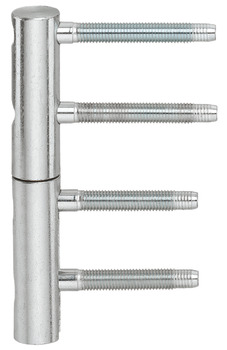

Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.290
Drill In Hinges

Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.290

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.290 by Hafele — A secure and long-lasting hinge solution for your doors.

Properties

Product Code: 922.62.290
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • 922.62.290_Safety notes
  • ISO_27001_ENG
  • ISO_27001_TR
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

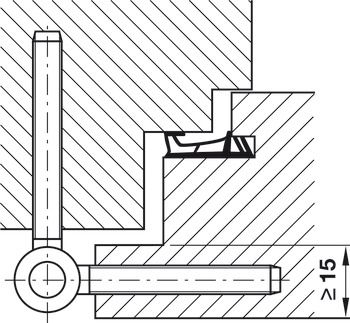

The Drill-in hinge, Triplex 220-3D SM-RA, Anuba, for front doors - 922.62.290 by Hafele represents a refined fusion of quality and functionality. This hinge is suitable for both DIN left and DIN right hand applications and features a design that allows for a permanently straight positioned hinge top part. With its white and zinc plated finish, it combines aesthetics with durability, making it ideal for wooden frames and rebated wooden front doors.

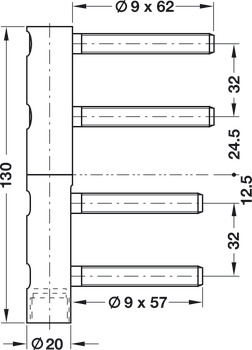

Notably, this hinge can support a maximum door weight of 120 kg for two hinges and 150 kg for three hinges, ensuring robust performance. The knuckle diameter of 20 mm and knuckle length of 130 mm provide a strong structure, while the 8 mm drill hole diameter facilitates easy installation. The self-lubricating sintered metal bearing type ensures longevity and smooth operation.



This product offers adjustable side, height, and closing pressure settings, enhancing user convenience. It is certified in compliance with EN 1935:2002 standards. The Drill-in hinge by Hafele stands out for its durability and functionality, making it a reliable choice for your doors.
