Drill In Hinges

Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.390

HAFELE

Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.390 by Hafele — A reliable support for door installations.

Properties

Product Code: 922.62.390
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.62.390_Safety notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

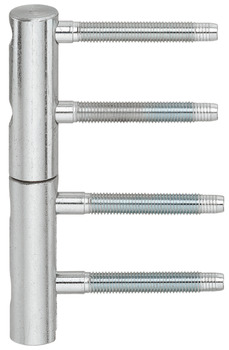

The Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.390 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and right-hand use, featuring a threaded coupling for a permanently straight-positioned hinge top part. Its white, zinc-plated finish provides an aesthetic appeal while being made of durable steel.

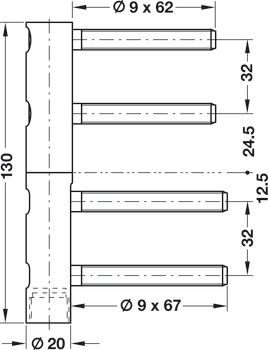

Advantages of this hinge include a maximum door weight capacity of 120 kg for two hinges and 150 kg for three hinges. With a knuckle diameter of 20 mm and a knuckle length of 130 mm, it offers a robust structure. It is compatible with a drill hole diameter of 8 mm, making installation straightforward. The self-lubricating sintered metal bearing type ensures long-lasting performance.

The Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors stands out with its reliable construction and adjustable features, making it an excellent choice for door installations.
