Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.190
Drill In Hinges

Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.190

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.190 by Hafele — a reliable and sturdy hinge solution for your doors.

Properties

Product Code: 922.62.190
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols
Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • 922.62.190_Safety notes
  • ISO_9001_TR
  • ISO_27001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

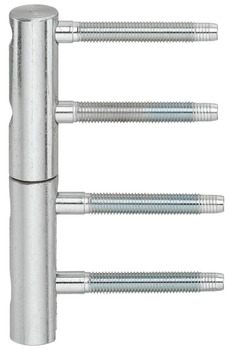

The Drill-in hinge, Triplex 220-3D SM-FR, Anuba, for front doors - 922.62.190 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use and features a threaded coupling for permanent straight positioning of the hinge top part. With its white and zinc-plated finish, it offers an aesthetic appeal while being made of durable steel.

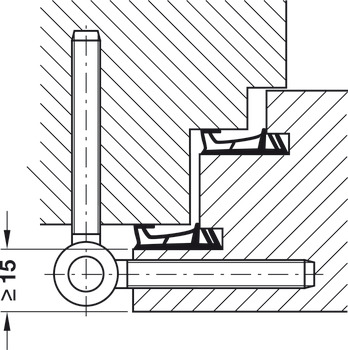

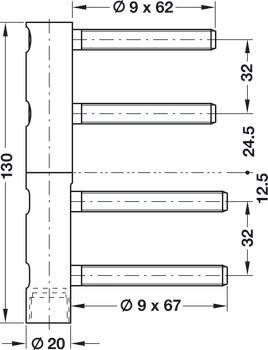

Providing high performance and durability, this hinge is designed for wooden frames and supports a maximum door weight of 120 kg with two hinges and 150 kg with three hinges. The knuckle length of 130 mm and a knuckle diameter of 20 mm make it suitable for an 8 mm drill hole. Utilizing a self-lubricating sintered metal bearing, it ensures smooth operation even after prolonged use.



This product is designed to provide reliability and long-lasting use in door systems, ensuring that users' needs are met. Trust Hafele for the quality of your doors.
