Drill In Hinges

Drill-in hinge, Simonswerk V 4426 WF - 922.04.671

HAFELE

Drill-in hinge, Simonswerk V 4426 WF - 922.04.671 by Hafele — A durable and practical hinge that simplifies your door installation.

Properties

Product Code: 922.04.671
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 9.4
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

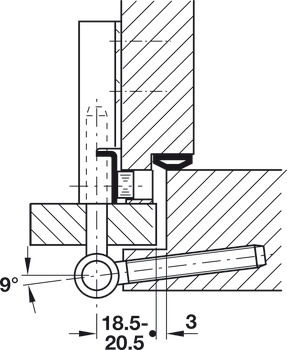

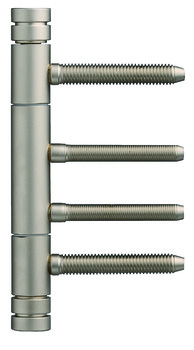

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.671 by Hafele represents a refined fusion of quality and functionality. This hinge is made from robust steel and is suitable for both DIN left and DIN right-hand use. Designed with an overlay distance of 12 mm or more, it is ideal for wooden frames and rebated wooden interior doors.

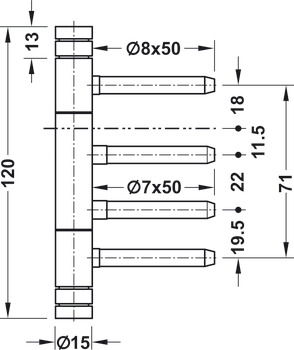

Offering high performance, this hinge can support a maximum door weight of 70 kg for two hinges. It features a knuckle diameter of 15 mm and a knuckle length of 94 mm. Additionally, the required drill hole diameters are 6.8 mm for the wing part and 7.2 mm for the frame component. It is equipped with maintenance-free friction bearings, ensuring long-lasting use.

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.671 stands out with its ease of installation and durability. This product is a preferred choice among door hinges.
