Drill-in hinge, Simonswerk V 4426 WF - 922.04.582
Drill In Hinges

Drill-in hinge, Simonswerk V 4426 WF - 922.04.582

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Simonswerk V 4426 WF - 922.04.582 by Hafele — A reliable solution for door installations.

Properties

Product Code: 922.04.582
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 9.4
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 922.04.582_Safety notes
  • ISO_9001_ENG
  • ISO_9001_TR
  • ISO_27001_TR
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

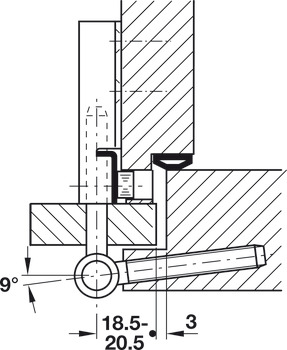

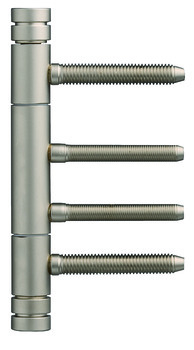

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.582 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable steel and is designed for both DIN left and right-hand use, providing flexibility with an overlay distance of 12 mm. Its user-friendly design makes it ideal for wooden frames and interior doors.

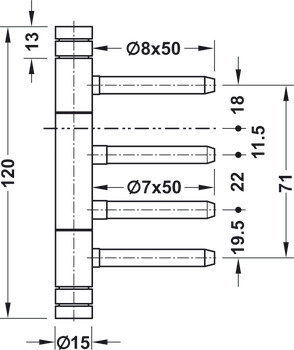

Capable of supporting up to 70 kg of door weight, the hinge features a knuckle length of 94 mm and a knuckle diameter of 15 mm, ensuring a robust connection. The drill hole dimensions are 6.8 mm for the wing part and 7.2 mm for the frame component, simplifying the installation process. Additionally, it utilizes friction bearings that require no maintenance, promising long-lasting performance.



This product is an ideal choice for users seeking reliability and durability in door installations. With Hafele's quality, this hinge promises long-lasting use.
