Drill-in hinge, Simonswerk V 4426 WF - 922.04.571
Drill In Hinges

Drill-in hinge, Simonswerk V 4426 WF - 922.04.571

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Simonswerk V 4426 WF - 922.04.571 by Hafele — a reliable solution for door installations.

Properties

Product Code: 922.04.571
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 9.4
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • 922.04.571_Safety notes
  • ISO_9001_ENG
  • ISO_9001_TR
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

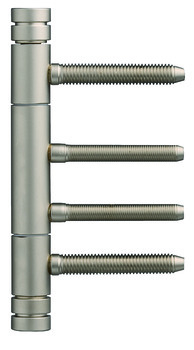

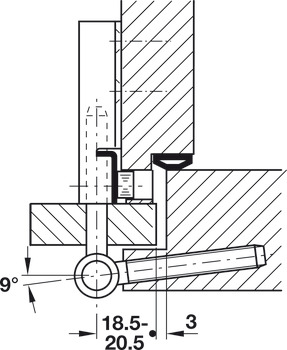

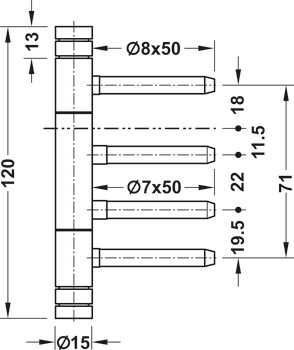

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.571 by Hafele represents a refined fusion of quality and functionality. This hinge is made of durable steel and is suitable for both DIN left and right-hand use. With a knuckle diameter of 15 mm and a length of 94 mm, it facilitates easy installation. The product can support a maximum door weight of 70 kg and features an overlay distance of ≥12 mm.

The drill-in hinge is designed for wooden frames and rebated wooden interior doors. Its ease of use and maintenance-free friction bearings ensure long-lasting performance. Additionally, the required drill hole diameters are 6.8 mm for the wing part and 7.2 mm for the frame component, making the installation process more efficient.



This drill-in hinge stands out due to its robust construction and functionality. It is a reliable choice for door installations.
