Drill In Hinges

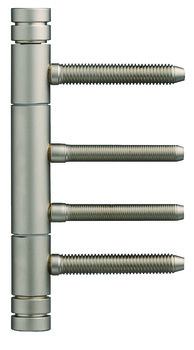

Drill-in hinge, Simonswerk V 4426 WF - 922.04.540

HAFELE

Drill-in hinge, Simonswerk V 4426 WF - 922.04.540 by Hafele — a reliable and durable solution for wooden door installations.

Properties

Product Code: 922.04.540
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 9.4
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
922.04.540_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

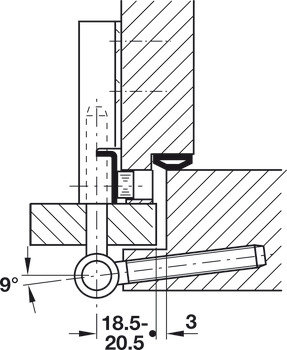

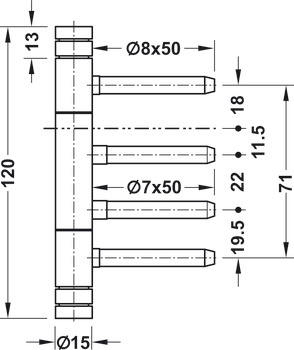

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.540 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right use, featuring an overlay distance of 12 mm, making it ideal for wooden frames. Made from high-quality steel, this hinge can support a maximum door weight of 70 kg and boasts a knuckle length of 94 mm.

Notable for its performance and durability, this product is equipped with maintenance-free friction bearings, ensuring ease of use and longevity. The hinge facilitates quick and practical installation, with specified drill hole sizes of 6.8 mm for the wing part and 7.2 mm for the frame component.

The Drill-in hinge, Simonswerk V 4426 WF - 922.04.540 stands out for its robust construction and practical use. It is a must-have for wooden door installations.
