Drill-in hinge, Simonswerk V 3420 WF - 922.04.182

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, Simonswerk V 3420 WF - 922.04.182 by Hafele — an excellent solution for door hinges.

Properties

Product Code: 922.04.182
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
922.04.182_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

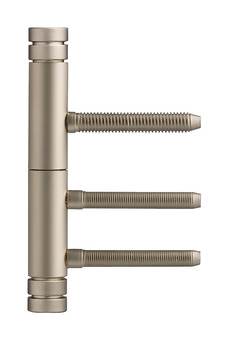

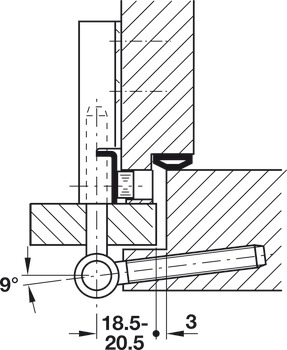

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.182 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable steel and is suitable for both DIN left and DIN right-hand applications. With an overlay distance of 12 mm, it provides ease of installation and can support door weights of up to 40 kg.

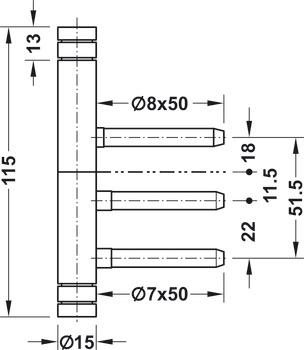

The product features a 15 mm knuckle diameter and an 89 mm knuckle length, along with compatible drilling hole sizes of 6.8 mm for the wing part and 7.2 mm for the frame component. Its maintenance-free friction bearing ensures a long-lasting performance.

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.182 stands out with its robust construction and high-quality materials, making it a preferred choice in the market.
