Drill In Hinges

Drill-in hinge, Simonswerk V 3420 WF - 922.04.171

HAFELE

Download Product ID Card

Download Product Files

Drill-in hinge, Simonswerk V 3420 WF - 922.04.171 by Hafele — a reliable solution for your door needs.

Properties

Product Code: 922.04.171
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.04.171_Safety notes
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

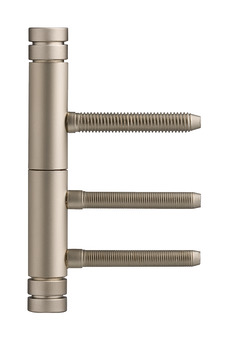

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.171 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and right hand use, making it versatile for various applications. Crafted from durable steel, it features a knuckle diameter of 15 mm, ensuring long-lasting performance.

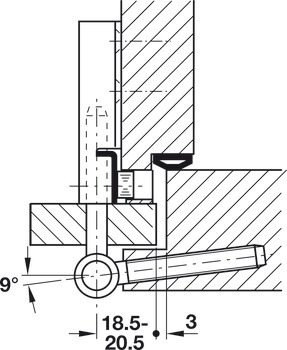

This product can support a maximum door weight of 40 kg and has a knuckle length of 89 mm, providing robust support. With drill hole diameters of 6.8 mm for the wing part and 7.2 mm for the frame component, installation is straightforward. The friction bearing design is maintenance-free, offering additional convenience to users.

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.171 stands out in the market due to its solid construction and longevity. Its quality materials and easy installation make it a preferred choice.
