Drill In Hinges

Drill-in hinge, Simonswerk V 3420 WF - 922.04.140

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, Simonswerk V 3420 WF - 922.04.140 by Hafele — an excellent hinge solution for wooden doors.

Properties

Product Code: 922.04.140
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
922.04.140_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

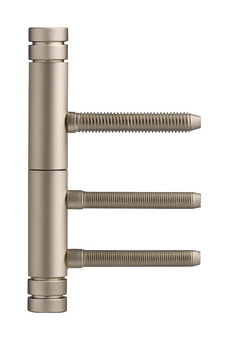

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.140 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and right-hand use, making it versatile for various applications. Crafted from durable steel, it can support door weights of up to 40 kg, ensuring reliability in performance.

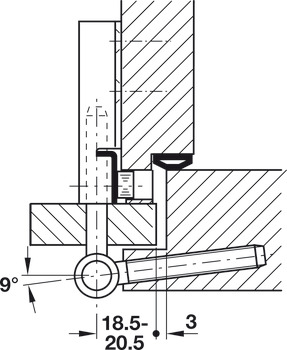

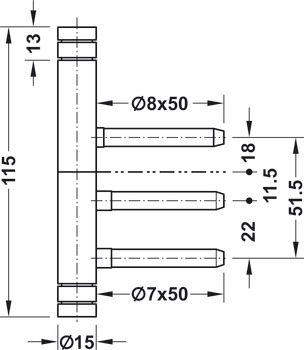

With a knuckle diameter of 15 mm and a knuckle length of 89 mm, this hinge is engineered for strength. The required drill hole diameters are 6.8 mm for the wing part and 7.2 mm for the frame component. Its friction bearing type ensures maintenance-free operation, allowing for a hassle-free experience.

This product is made from high-quality materials, offering an easy-to-use and reliable solution. An excellent choice for wooden doors, this hinge stands out with its long-lasting performance.
