Drill In Hinges

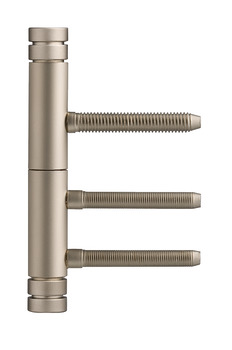

Drill-in hinge, Simonswerk V 3420 WF - 922.04.082

HAFELE

Drill-in hinge, Simonswerk V 3420 WF - 922.04.082 by Hafele — Provides robust support and functionality for door installations.

Properties

Product Code: 922.04.082
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.04.082_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.082 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable steel and is suitable for both DIN left and DIN right hand use. With a knuckle diameter of 15 mm and a length of 89 mm, it provides reliable support in door installations.

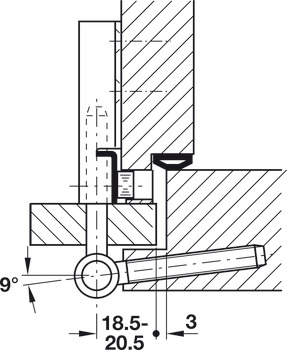

The installation is straightforward, capable of supporting door weights up to 40 kg. The hinge features a wing part drill hole diameter of 6.8 mm and a frame component drill hole diameter of 7.2 mm, ensuring compatibility. Its friction bearing design requires no maintenance, making it user-friendly. Additionally, it is important to order aluminum receivers for frame linings separately.

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.082 is an excellent choice for those seeking reliability and durability in door installations. With Hafele's quality, this product offers a long-lasting and functional solution.
