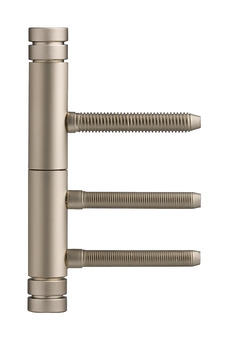

Drill-in hinge, Simonswerk V 3420 WF - 922.04.071
Drill In Hinges

Drill-in hinge, Simonswerk V 3420 WF - 922.04.071

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Simonswerk V 3420 WF - 922.04.071 by Hafele — A perfect hinge solution for wooden doors.

Properties

Product Code: 922.04.071
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 8.9
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 922.04.071_Safety notes
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

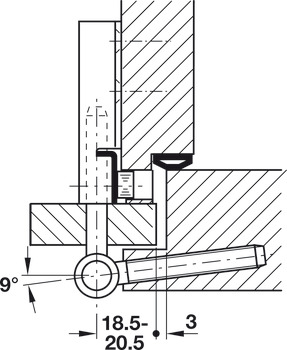

The Drill-in hinge, Simonswerk V 3420 WF - 922.04.071 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable steel and is designed for both DIN left and right-handed use, providing a versatile solution for various installations. With an overlay distance of 12 mm, it fits perfectly for rebated wooden interior doors.

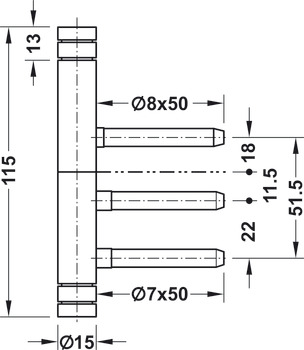

Notably, this hinge can support up to 40 kg of door weight when using two hinges, making it a robust choice for heavier doors. The knuckle length of 89 mm and diameters of 6.8 mm and 7.2 mm for the drill holes ensure easy installation. Additionally, it features friction bearings that are maintenance-free, enhancing its longevity and performance.



The Hafele Drill-in hinge, Simonswerk V 3420 WF - 922.04.071 is an excellent choice for enhancing the security and functionality of your doors. It is perfect for those seeking a long-lasting and practical solution.
